Home » Emerson / ASCO Valves » ASCO Valve 8315 High Pressure Steam Solenoid Valves

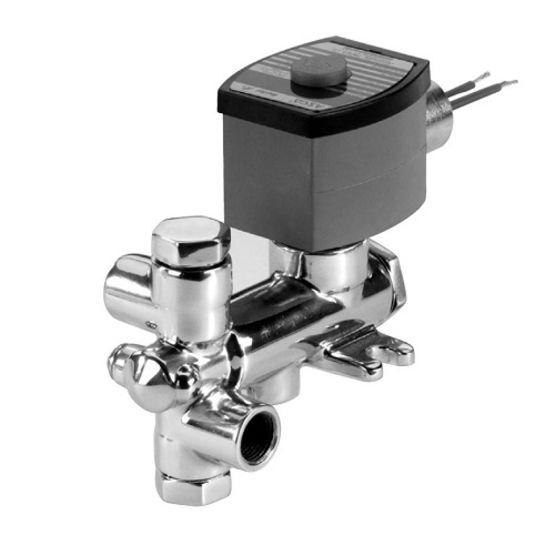

ASCO Valve 8315 High-Pressure Steam Solenoid
The ASCO Series 315, also known as 8315, steam solenoid valves are designed for high-flow and high-pressure service with steam media. They are ideal for power plant, biofuel, and heating equipment applications.
Prices Starting at $100.00
Shop ASCO 8315 Valves
ASCO 8315 Valve Specs
- Valve Actuation
- Solenoid – Direct Acting
- Body Material
- Brass
- Media
- Steam
- Pipe / Port Size
- 1/2 “; 1/4 “; 3/8 “
- Port Type
- NPTF
- Function
- 3 way – 3/2 Universal; 3 way – 3/2 Normally Open; 3 way – 3/2 Normally Closed
- Flow
- From .05-.1 Cv; From 0.1 Cv to 0.5 Cv; From 0.5 Cv to 1.0 Cv
- Voltage
- 24 AC; 110 AC; 120 AC; 480 AC; 6 DC; 12 DC; 24 DC; 48 DC; 120 DC; 240 DC; 125 DC Battery Charging; 250 DC Battery Charging | 50; 50/60; 60
- Max Differential / Max Operating Pressure
- Vacuum to 150 PSIG
- Operating Environment
- Hazardous; Indoor; Outdoor
- Standards / Regulations
- Type 1; Type 2; Type 3; Type 3S; Type 4; Type 4X; Type 6; Type 6P; Type 7; Type 9
ASCO 8315 Valve Features
- Brass bodies and stainless steel internal parts for high corrosion resistance
- Direct acting, requires no minimum operating pressure
- Ambient temperature rating (Class H coils AC): 32° F to 140° F (0° C to 60° C)
ASCO 8315 Valve Documents
