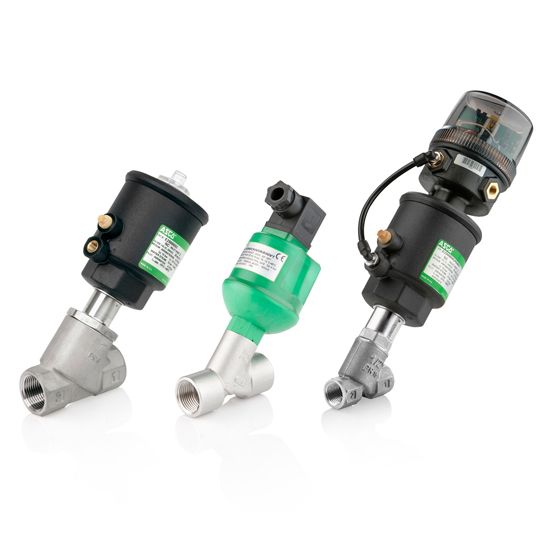

ASCO Valve 8290 Two-Way Angle Body Piston Valves
The ASCO Series 290, also known as 8290, is a pressure-operated, direct acting angle-body piston solenoid valve built for demanding applications. Its straight-through body design is available in bronze or stainless steel. The valve is suitable for general service applications (air, inert gas, water, oil, and light slurries), plus steam, hot water, and auxiliary fluids within the food and beverage industry. Many optional features available including a visual/electrical position indicator or a stroke limiter.
Prices Starting at $160.00
Shop ASCO 8290 Valves
ASCO 8290 Valve Specs
- Valve Actuation
- Motorized, Pneumatic – Air Pilot
- Body Material
- Bronze, Stainless Steel
- Media
- Aggressive Liquids/Gases, Air, Inert Gas, Fuel Oil, Hot Water, Light Oil, Oxygen, Steam, Water
- Pipe / Port Size
- 1/2 “; 3/8 “; 3/4 “; 1 “; 1 1/4 “; 1 1/2 “; 2 “; 2 1/2 “
- Port Type
- NPTF
- Function
- 2 way – 2/2 Normally Closed, 2 way – 2/2 Normally Open
- Flow
- From 2.0 Cv to 6.0 Cv, From 6.0 Cv to 14.0 Cv, Over 14.0 Cv
- Operating Environment
- Indoor, Outdoor
- Standards / Regulations
- RoHS, Type 4, Type 4X
ASCO 8290 Valve Features
- Proven durability in handling aggressive fluids such as steam, hot water, solvents, and light slurries
- Optional features include position indication and proportional control
- Rugged water-tight actuator made from tough fiber composite and protected with a double O-ring seal
- Spring-loaded stem seal: FKM fluoroelastomer wiper keeps harmful grit way from the stem area for exceptional durability
- Smooth stem movements guided by two oversized bearings for maximum reliability
- Anti-water hammer design: fluid passes under the disc resulting in slower closure
- Some versions are compatible with FDA CFR21 for food and beverage applications
