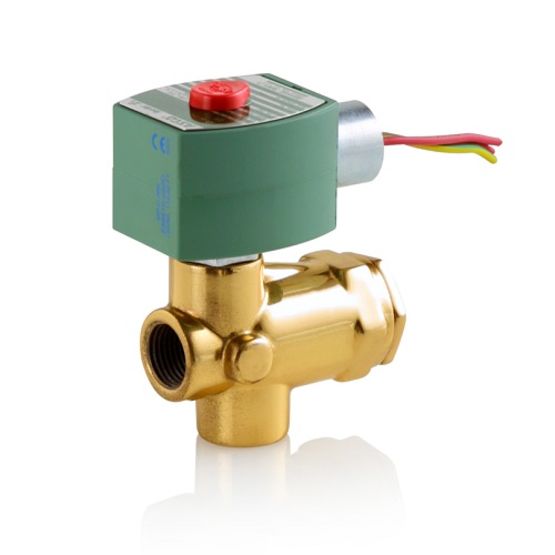

ASCO Valve 8223 Two-Way High Pressure Solenoid Valves
The ASCO Series 223 is ideal for high pressure water applications (up to 1500 PSI). Pilot operated solenoid valve available in a normally closed construction. They are a rugged piston construction built to withstand high pressures and are available AC or DC with brass and stainless steel bodies.
Prices Starting at $100.00
Shop ASCO 8223 Valves
ASCO 8223 Valve Specs
- Valve Actuation
- Solenoid
- Body Material
- Brass
- Media
- Air, Inert Gas; Light Oil; Water
- Pipe / Port Size
- 1/4 “; 1/2 “; 3/8 “; 3/4 “
- Port Type
- NPTF
- Function
- 2 way – 2/2 Normally Closed
- Flow
- From 1.0 Cv to 2.0 Cv; From 2.0 Cv to 6.0 Cv; From 6.0 Cv to 14.0 Cv
- Voltage
- 110 AC; 115 AC; 12 DC; 120 AC; 120 DC; 208 AC; 220 AC; 230 AC; 24 AC; 24 DC; 240 AC; 240 DC; 440 AC; 48 DC; 480 AC; 6 DC – 50; 60
- Max Differential / Max Operating Pressure
- Vacuum to 10.3 Bar
- Operating Environment
- Hazardous; Indoor; Outdoor
- Standards / Regulations
- Class I Div 1; Class I Div 2; Class II Div 1; Class II Div 2; CSA; Type 1; Type 2; Type 3; Type 3R; Type 3S; Type 4; Type 4X; Type 6; Type 6P; Type 7; Type 9
ASCO 8223 Valve Features
- 90° inlet and outlet post design for high flow rates
- Handles air, water, and oil media
- Brass or stainless steel bodies built to withstand corrosive environments
- Mountable in any position
- Meets all relevant CE directives, and is RoHS compliant for applications in lead-free environments
- Rugged piston construction built to withstand pressure ratings of 450 to 1500 psi
